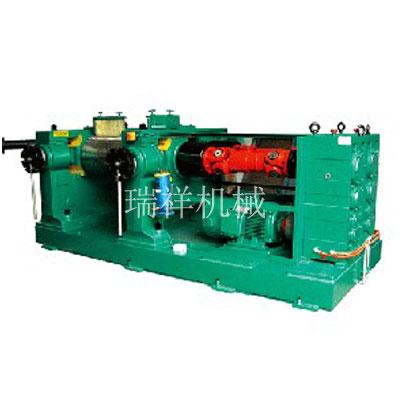

8/15mm Max roll distance Rubber Crusher
Price: |
24500.0~26000.0 USD |
Payment Terms: |
T/T |
Place of Origin: |
Jiangsu, China (Mainland) |
Product Detail
Model No.:
XKP-450/XKP-560
Production Capacity:
400-600kg/h
Delivery Date:
45 days
Front roll working Diameter (mm):
450/560
Roll working face length (mm):
650/800
Velocity ratio of roll (m/min):
1:1.38/1:1.30
Capacity (kg/h):
400-600/500-800
Dimensions(L×W×H)(mm):
4770×1846×1835/5064×2284×19...
Means of Transport:
Ocean
Packing:
plastic film
Brand Name:
LX
Back roll working Diameter (mm):
450/510
Front roll linear velocity (m/min):
23.2/23.56
Max roll distance (mm):
8/15
Linear velocity ratio power(kw):
55/90
Weight (T):
7/15
The safety shut-down in manual operation is set,with the function of automatic or crawl back swig the roll
Product Name:
Convenient range adjustment Rubber Crusher
1.Being made of cold hard alloy castiron,the roll wears well.The rolls have 3 types:double-channeled roll,single-channeled roll and double-smooth roll.
2.The safety shut-down in manual operation is set,with the function of automatic or crawl back swig the roll.
3.Convenient range adjustment is set in manually operation.The whole machine adopts channel bottom head for convenient carrying and maintenance.
Type | XKP-450 | XKP-560 |
Front roll working Diameter (mm) | 450 | 560 |
Back roll working Diameter (mm) | 450 | 510 |
Roll working face length (mm) | 650 | 800 |
Front roll linear velocity (m/min) | 23.2 | 23.56 |
Velocity ratio of roll (m/min) | 1:1.38 | 1:1.30 |
Max roll distance (mm) | 8 | 15 |
Capacity (kg/h) | 400-600 | 500-800 |
Linear velocity ratio power(kw) | 55 | 90 |
Dimensions(L×W×H)(mm) | 4770×1846×1835 | 5064×2284×1978 |
Weight (T) | 7 | 15 |
